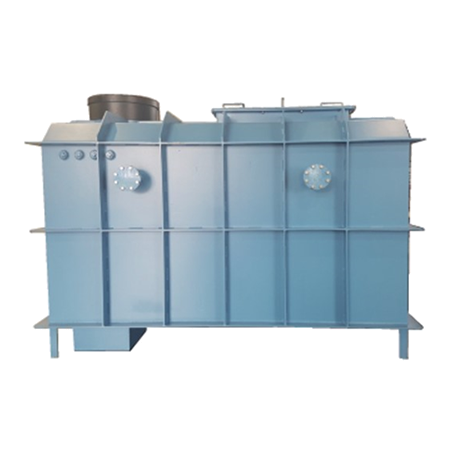

Valve Room

Design Features *

- The valve chamber is installed for protection and maintenance of buried valves and pumps.
- The valve chamber is installed for the purpose of protecting and maintaining buried valves and pumps.
- Formed in a watertight structure to prevent internal or external leakage
- Excellent watertightness prevents corrosion of valves and pumps
- Prevents corrosion of valves and pumps with excellent watertightness
- Steel valve chambers are more convenient to transport and construct than concrete valve chambers, and are more economical

Specification *

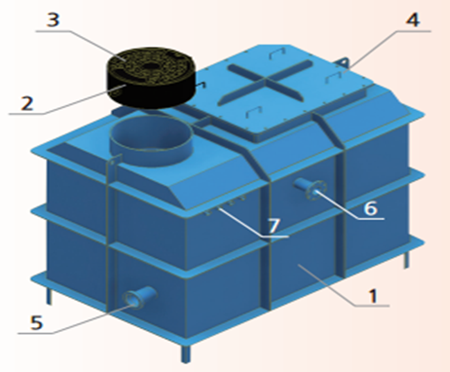

Materials

1. BODY: SS 275 (SS 400), rolled steel for general structure
2. Manhole cover frame: GCD 450 (spheroidal graphite cast iron) KS D 4302
3. Manhole cover: GCD 450 (spheroidal graphite cast iron) KS D 4302
4. Material inlet: SS 275 (SS 400), rolled steel for general structure
5. Pipe connection joint: SS 275 (SS 400), rolled steel for general structure
6. Ventilation port: SS 275 (SS 400), rolled steel for general structure
7. Electric wire socket: SS 275 (SS 400), rolled steel for general structure
8. Wire socket socket: SS 275 (SS 400), rolled steel for general structure
※ Other materials can be applied according to the customer's request.
